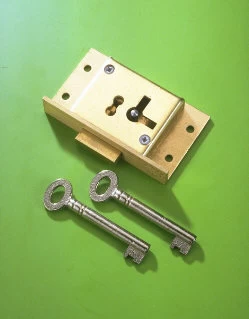

2 1/2” Cut Cupboard 2 Lever 61

Model: 2.52L61

Brand: A & E Squire

Cut cupboard locks need to be cut into the wood on the inside of the door. As all locks have a 2 way keyhole cap they can be utilised as a drawer lock if required. Available as Left Hand (illustrated) or Right Hand.

Brass Outer Plate Dimensions:
2 1/2″ x 1 1/2″ x 1/2″ (63mm x 38mm x 13mm)
Distance To Pin: 5/8″ (16mm)

Material:
2 Brass Levers, Extruded Brass Plate, Screwed Brass Cap, Brass Bolt.

Finish:
Sanded Plate and Bolt, Self Colour Cap.

Keys:
2 Keys Per Lock, Malleable Iron, Nickel Plated.

Differs:
12 Differs OR Keyed Alike
