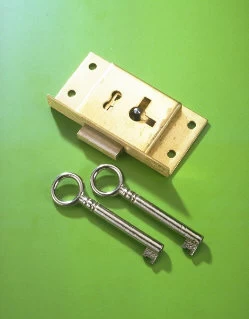

1 1/2” Cut Cupboard 2 Lever 22C

Model: 1.52L22C

Brand: A & E Squire

Cut cupboard locks need to be cut into the wood on the inside of the door. As all locks have a 2 way keyhole cap they can be utilised as a drawer lock if required. Available as Left Hand (illustrated) or Right Hand.

Brass Outer Plate Dimensions:
1 1/2″ x 1 1/8″ x 3/8″ (38mm x 28mm x 10mm)
Distance To Pin: 1/2″ (13mm)

Material:
2 Brass Levers, Brass Plate, Riveted Brass Cap, Brass Bolt.

Finish:
Sanded Selvedge and Bolt, Self Colour Back Plate and Cap.

Keys:
2 Keys Per Lock, Malleable Iron, Nickel Plated.

Differs:
Keyed Alike Only
